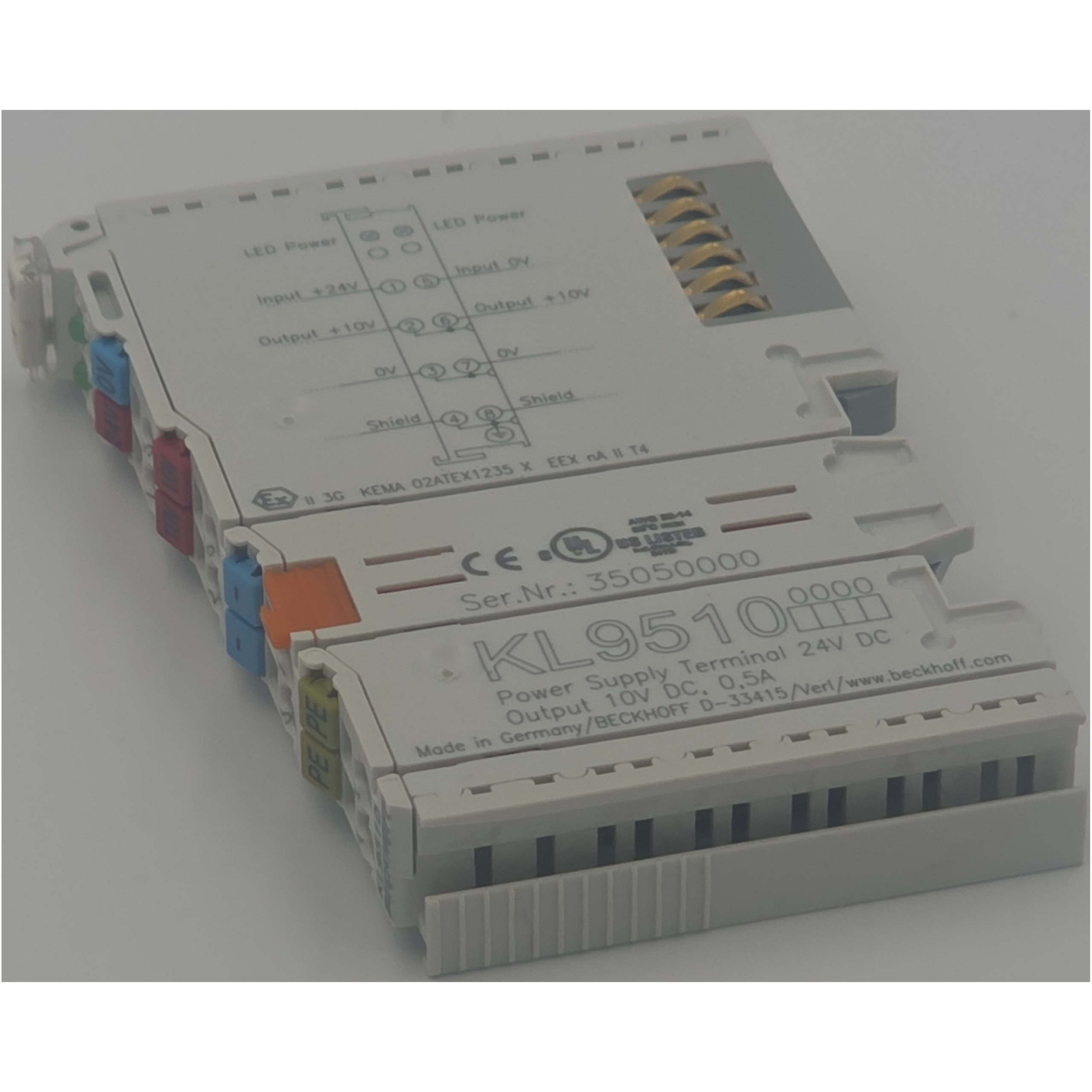

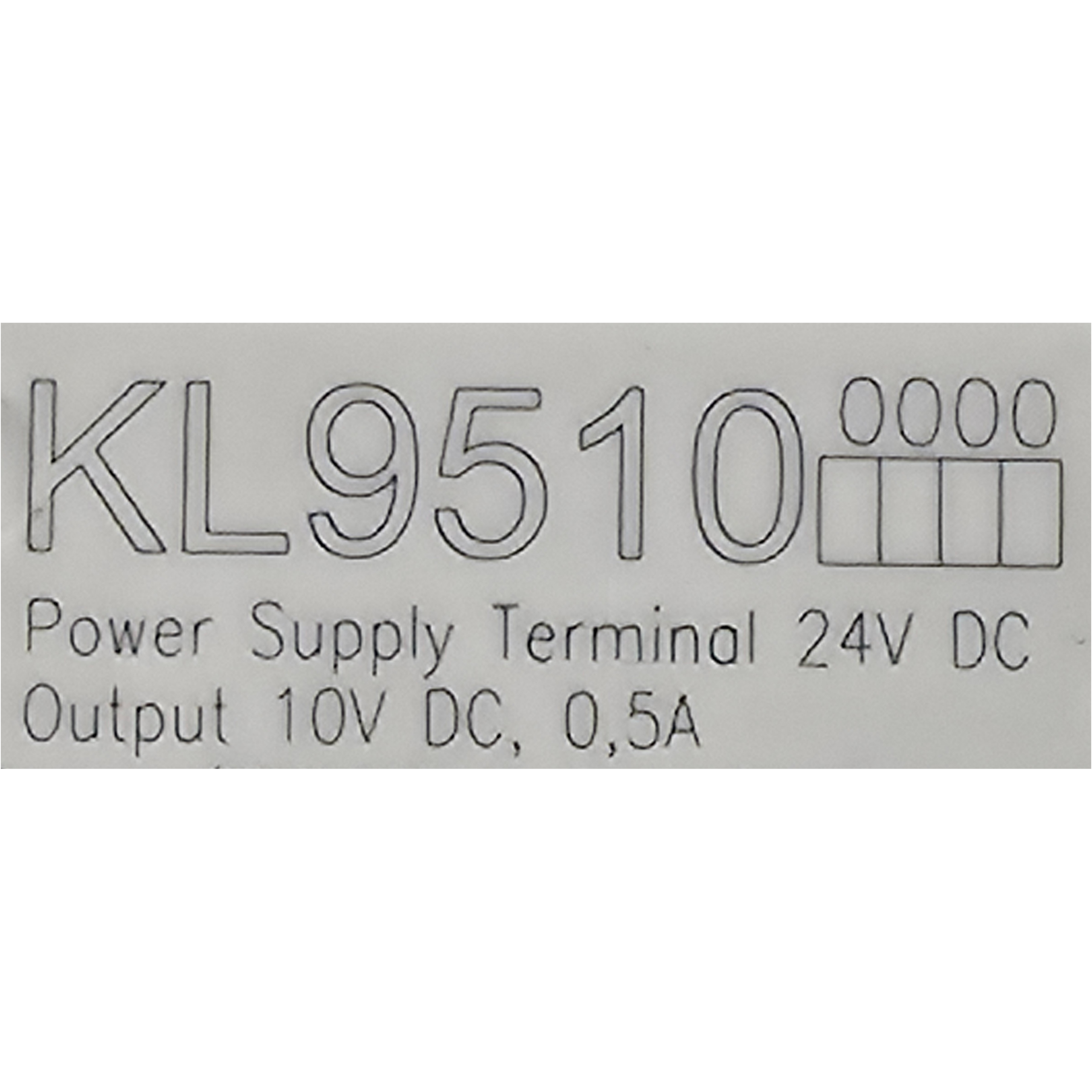

Beckhoff KL9510 is a KL9xxx power supply terminal used to create a local 10 V DC supply within a Bus Terminal station. It converts the available 24 V DC supply to a stabilized 10 V DC output that can be accessed directly at the terminal and passed on through the power contacts.
This allows subsequent terminals or circuits requiring 10 V DC to be supplied without adding a separate external power supply at every point in the station. Power LEDs indicate the operating state of the terminal.
The input and output of the KL9510 are not electrically isolated. When replacing or extending a station, the existing potential distribution and the requirements of the supplied terminals should therefore be checked. Detailed voltage, current and ripple values are listed in the technical specifications.
Manufacturer documentation is available from Beckhoff Automation.
