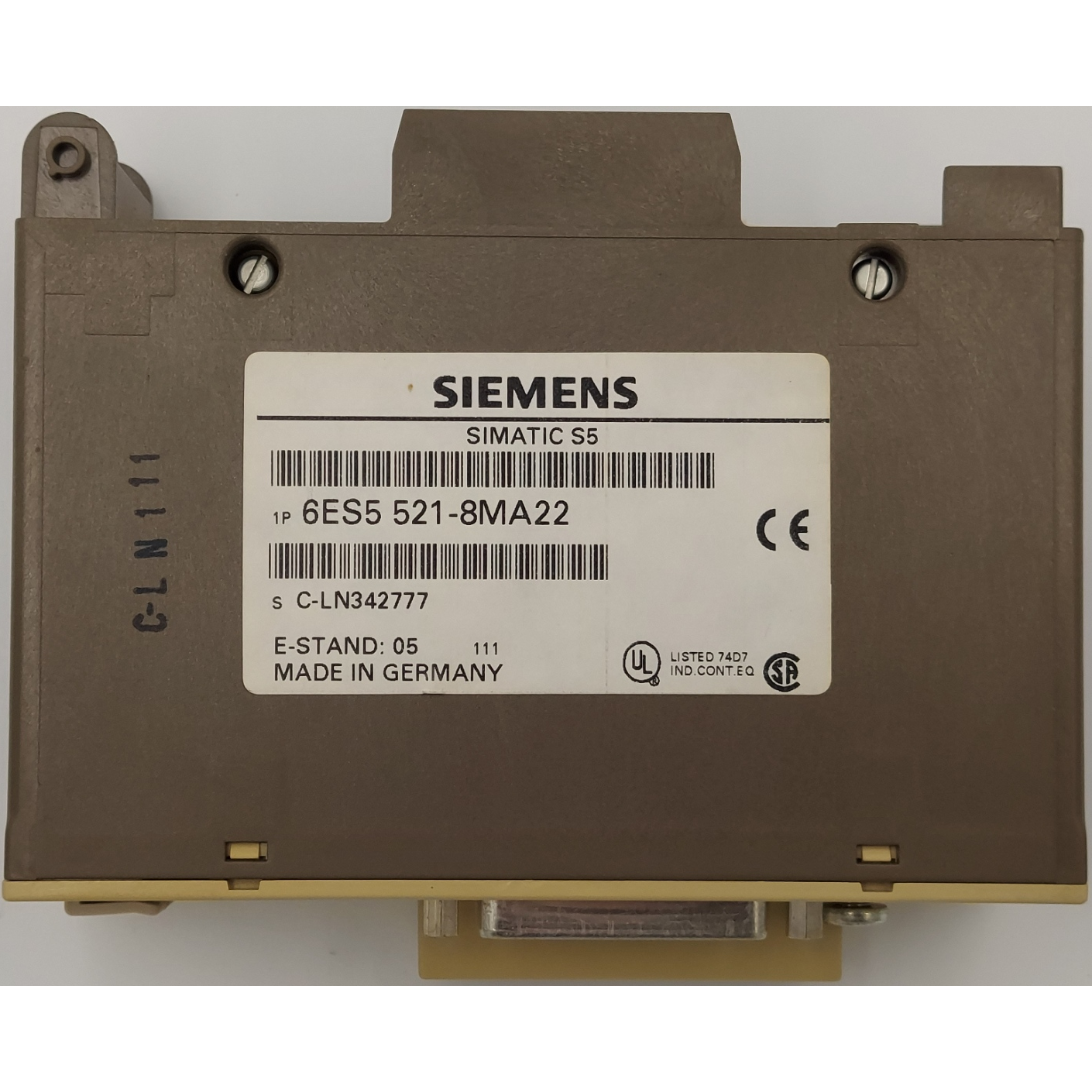

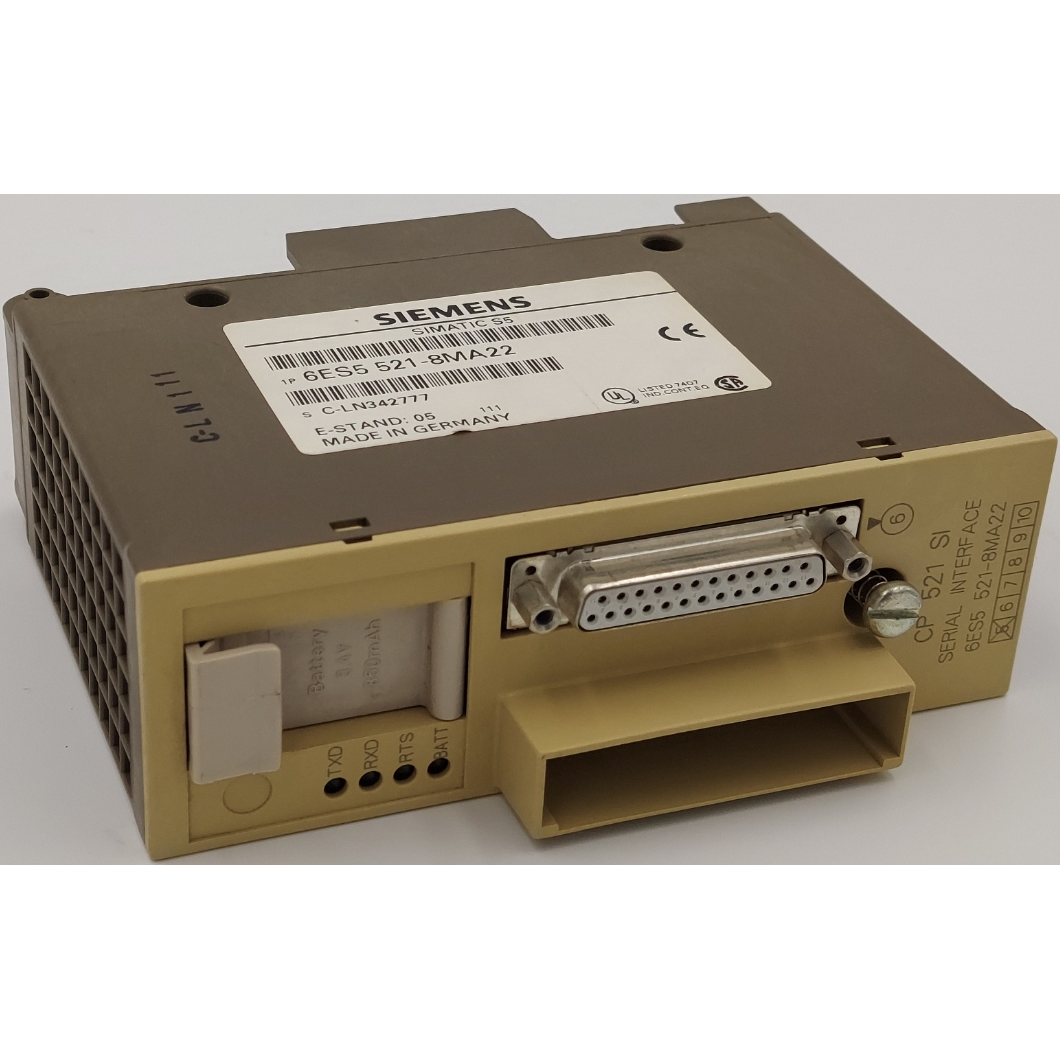

6ES5521-8MA22, 6ES5 521-8MA22 Siemens SIMATIC S5. CP 521 SI communications processor with V.24 (RS-232C) and 20 mA TTY serial interfaces.
The Siemens SIMATIC S5 CP 521 SI 6ES5521-8MA22 is a communications processor designed for serial data communication in SIMATIC S5 automation systems. The module can be used with S5-90U, S5-95U and S5-100U programmable controllers as well as ET 200U distributed I/O systems. It is particularly suitable for maintenance, servicing and replacement applications in existing industrial installations based on the SIMATIC S5 platform.
The CP 521 SI communications processor supports serial communication via a V.24 interface, corresponding to RS-232C, as well as a 20 mA TTY interface. According to Siemens documentation, the module supports transmission rates from 110 to 9600 bit/s.
The CP 521 SI features its own central processing unit, allowing it to handle communication tasks independently of the main PLC processor. It was developed for data exchange between SIMATIC S5 automation systems and external devices using serial communication.
The 6ES5521-8MA22 can be used in existing installations based on SIMATIC S5 controllers. It is especially useful for machine maintenance, replacement of defective modules and continued operation of older production equipment in which SIMATIC S5 controllers are still in service.
Key features include:
Siemens classifies the 6ES5521-8MA22 as a discontinued product that was removed from the product range without a direct replacement. The CP 521 SI is therefore primarily used today as a spare part for maintaining existing SIMATIC S5 installations.
Current product availability can be checked in the Polrad online store. Additional technical information and documentation are available on the official Siemens product page.
